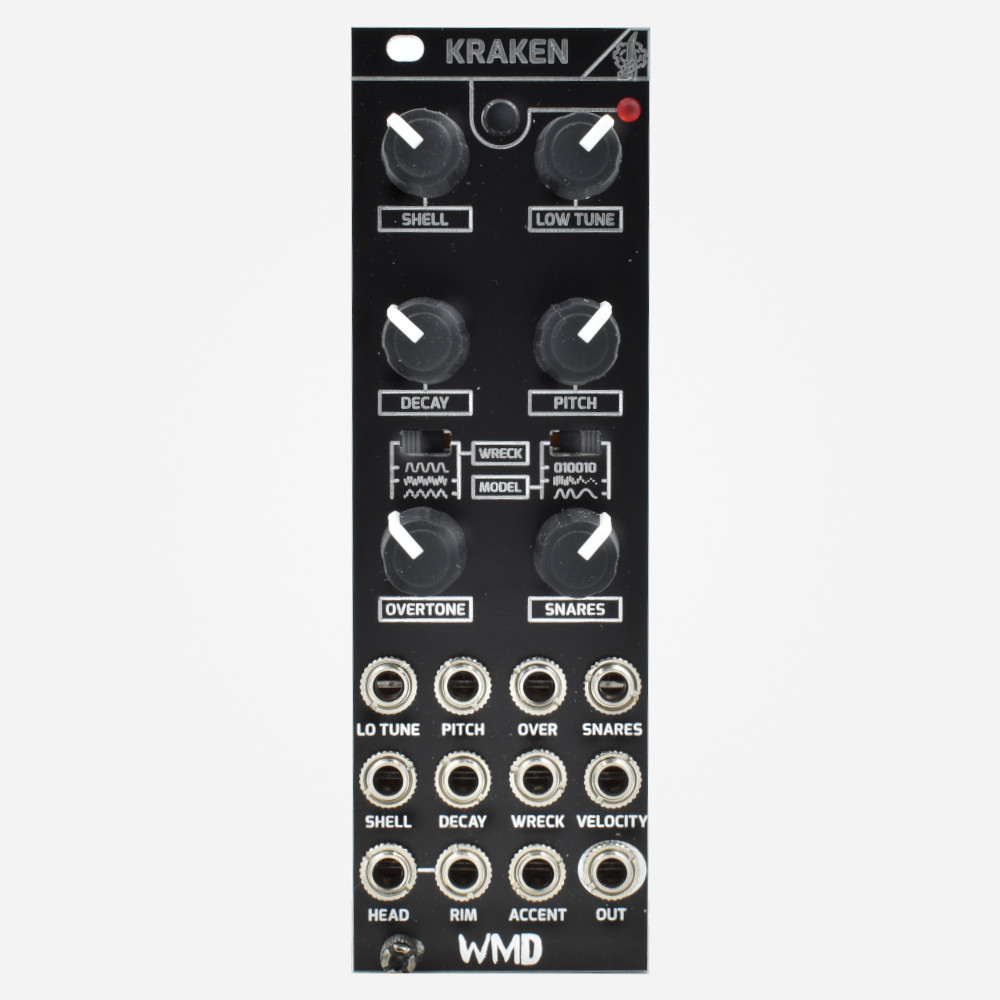

Kraken is a physical modeling snare drum module for eurorack modular synthesizers.
No samples, 100% digital synthesis with the ability to make realistic snare drums of all
sizes, shapes, materials, and colors. Similar to Crucible, Kraken uses a network of
classic synthesis blocks like delay, digital filters, and noise to create a very unique
resonator.

"Crack-in" to the snare drum sound you're into most by adjusting parameters that
corelate to physical drum properties such as shell type and size, head tightness,
amount of overtone, and how tight and bright the snares sound.
You like snare samples? Great! Although Kraken does not use any recordings to
generate sound, you can get a perfectly repeatable snare sound, similar to a sampler by
using digital noise to generate the sound of the "snares". Dial in the decay to cut the
sound short, and use different gate lengths to mimic "gate" mode style sounds in
samplers.

Want your snare to sound more realistic? Switch to analog noise to imitate the subtle
difference of a drummer hitting the snare slightly different on each hit.
Perfect Pitch... kind-of. Optional pitch shifter on the output widens the sonic palette as
well as the frequency range, while imparting a unique character of it's own, reminiscent
of old school samplers and pitch shifter pedals. Pitch knob and CV input take control of
the pitch shifter when in this mode.

Wreck the ship with the Wreck switch and CV input. 3 different distortion characters
push the envelope that much further with an analog style gained up hard clipping,
wavefolding, and bit depth reduction.

At some shell settings, gain gets loud and fedback like running a snare mic through a
distortion pedal. The wavefolder sounds like over-the-top compression with lots of high
frequency content. The bit depth reduction setting let's you dial in a desired amount of
"vintage" digital artifacts. Moving the switch to these different modes is only a preview.
Use the Wreck CV input for the most control over your sound.

Kraken is begging to be sequenced. Use the Head, Rim, and Accent gate inputs to
start your basic rhythm of hits, sidesticks, rimshots and accented sounds. Sequence
the Velocity input with a variable CV source to bring the pattern to life and put the
drummer behind the kit.

Pair with Crater, Fracture, Chimera, and Crucible for a completely unique set of drums
for your Eurorack Modular Synthesizer!

Features:



•  No samples, 100% digital synthesis
•  3 built-in distortion types
•  Digital and analog noise source
•  Pitch shifter
•  Wide range of sounds
•  Two trigger inputs - Hit both simultaneously for a realistic "rimshot" sound.

Specifications:

8hp

Depth: 30mm (with cables)

Power:

+61mA, -17mA All CV
