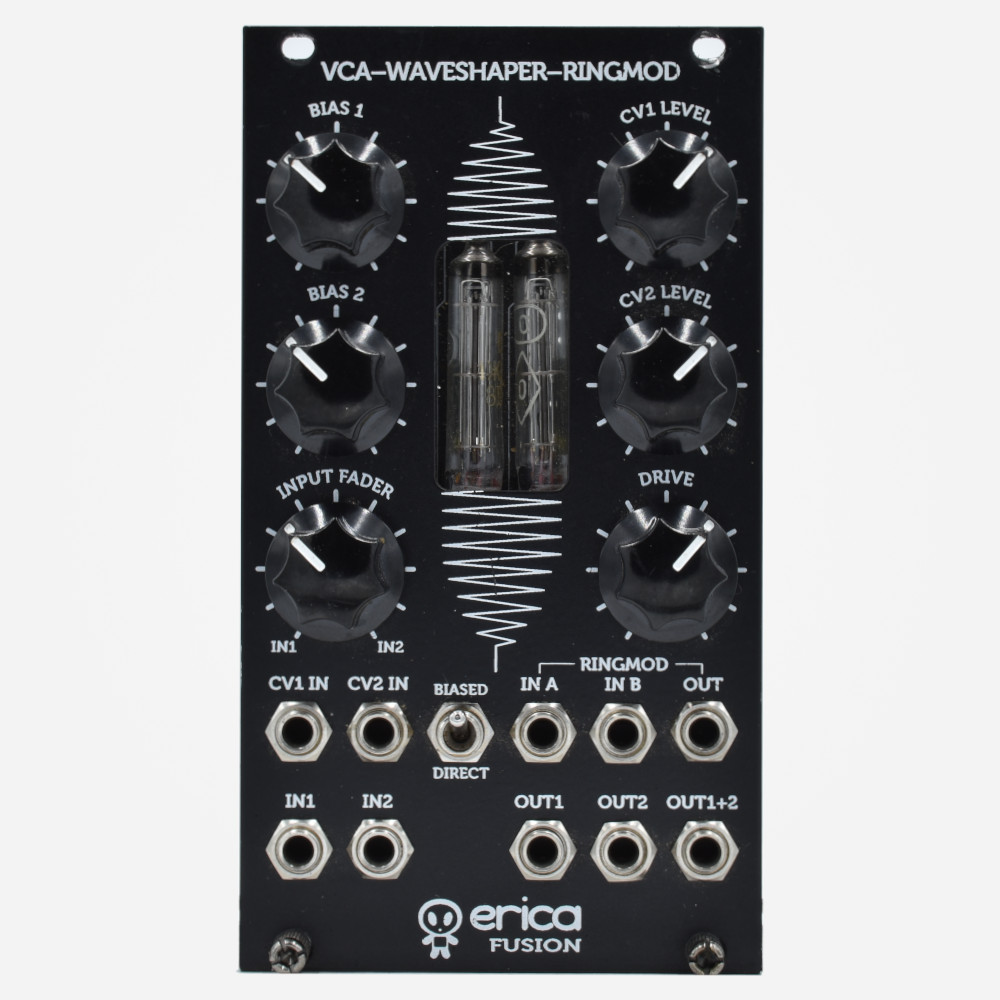

The Fusion VCA/Waveshaper/Ringmodulator is a complex sound processor that combines VCA, waveshaper and ringmodulator. It’s not a regular VCA; it can operate as one, but most of the power of the module is in advanced modulations – with two CVs applied simultaneously to different stages of the VCA, audio rate modulations, using ringmodulator as a waveshaper – your imagination is the limit!
Features
- Full analogue design
- Vacuum tube based VCA – two miniature pentodes for better gain reduction
- Two unconventional CV controls – CVs are not mixed, but they control different grid voltages of the tubes
- Manual VCA bias control
- Manual overdrive
- Input crossfader
- Built-in ringmodulator
- Direct switch for conventional VCA mode
- Low power consumption due to miniature vacuum tubes
Specifications:
14hp
40mm depth
48mA
-69mA
Note: This is a used item, and while it is guaranteed to be fully functional it is almost sure to also contain "rack rash" on the mounting holes and have some minor scratches on the panel from use. It will include a ribbon cable, m3 screws, and a box, but not the original box.
