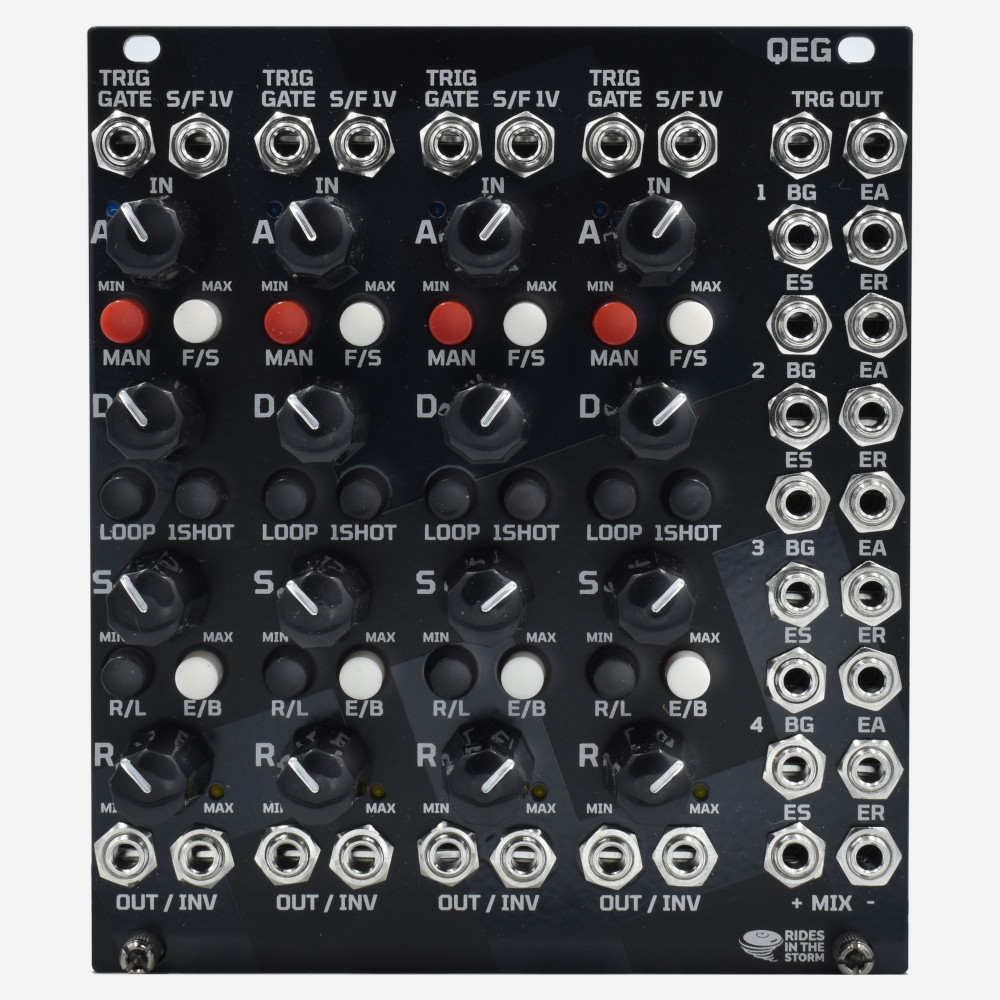

Quad Loopable ADSR Envelope Generator with 16 Trigger and Mix Outs

• Quad Version of FEG plus Trigger Outs

• Mix Out (normal and reversed) of all envelopes for multistage applications

• Very exponential “snappy” curve and rounded edges for a compressed “bonky” sound

• Two time zones are offered

• Remote control via CV of two time zones

• Loopzone from Attack to Release

• One shot mode for trigger signals

• Jumper at the back for reset mode

• Manual Trigger button

• Normal and Inverse Output

• Trigger Outs for each section: Begin of GATE, End of Attack, End of Sustain (GATE), End of Release

Stage trigger outs are great for delayed envelopes and other types of complex triggered modulation!

Specifications:

Rackspace: 22HP
Depth: 25mm
Power consumption: 120 mA (+12 V) / 100 mA (-12 V)
