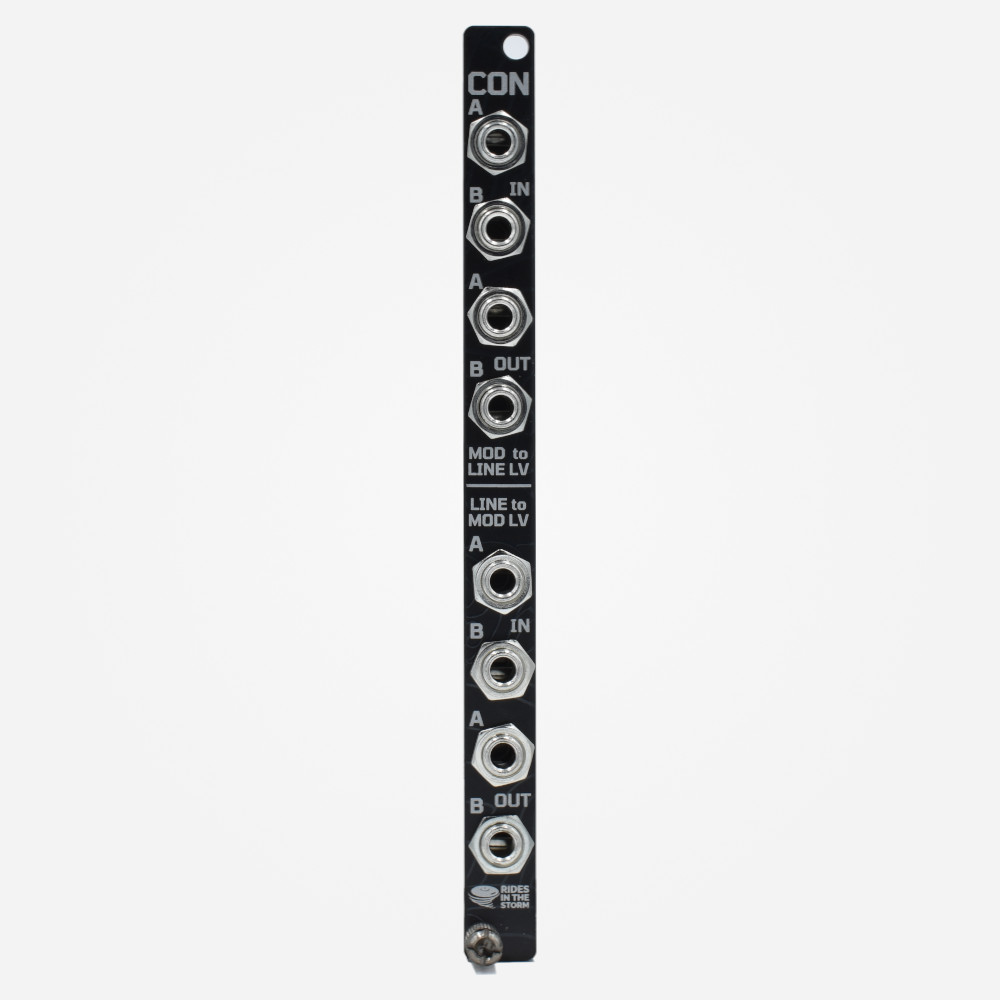

Compact 2hp Dual input preamp and output converter. Can convert two channels of line to eurorack level and two channel of eurorack to line. Also features jumpers to increase the gain making it suitable for HI-Z signals.
Features:
- Quad Gain Converter (Normal and High)
- Two channels from line level to modular level and
- two channels from modular level to line level. Very low noise and
- low distortion circuit while preserving the transients.
- Two versions: Normal and High
- gain stage is 5,29 and 14,46 dB for Normal and 11 and +20,8dB for High
- attenuator stage is -4,55 and -13,16 dB for Normal and High
- Normal version is cool for line signals, humbucker guitars, synths with powerful output.
- High version is cool for line signals with volume control, single coil guitars, synths with low output.
Rackspace: 2HP
Power consumption: +/- 10mA
