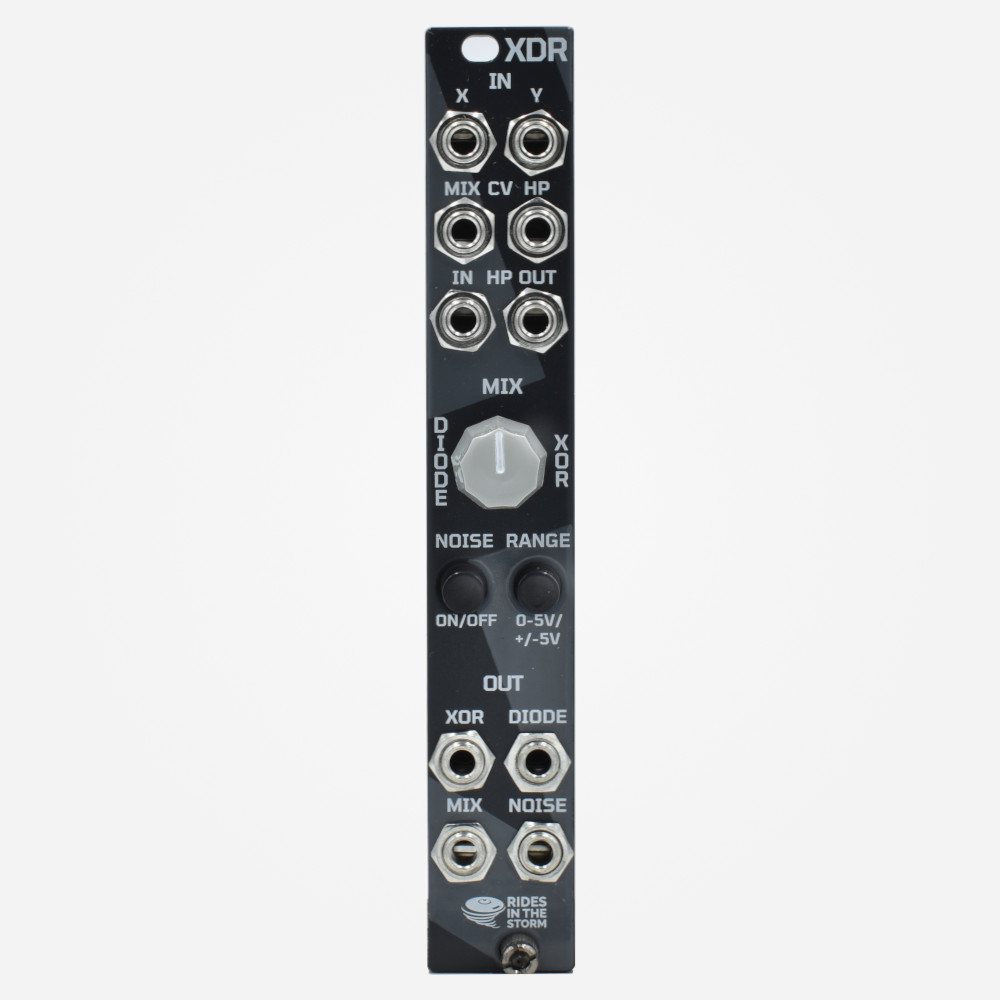

Analog Noise Generator and Ring Modulator with two types - XOR and Diode Ring circuit

Mix control for crossfading between both circuits X, Y and CV mix inputs High pass filter (6dB) with CV input for the XOR ring modulator or for external signals Outputs for mix, XOR and diode ring modulator Switchable noise generator with separate output Offset switch for the Mix-CV input for use with envelopes or LFOs (0V to +5V / -5V to +5V).

Diode Ring is a classic ring mod circuit, where XOR is common as an oscillator setting on certain synths like the Korg MS-20, where the "RING" setting on the oscillator is the square waves of each oscillator into an XOR Logic Gate.

Rackspace: 4 HP
Depth: 25mm
Power consumption: 40 mA (+12 V) / 40 mA (-12 V)
