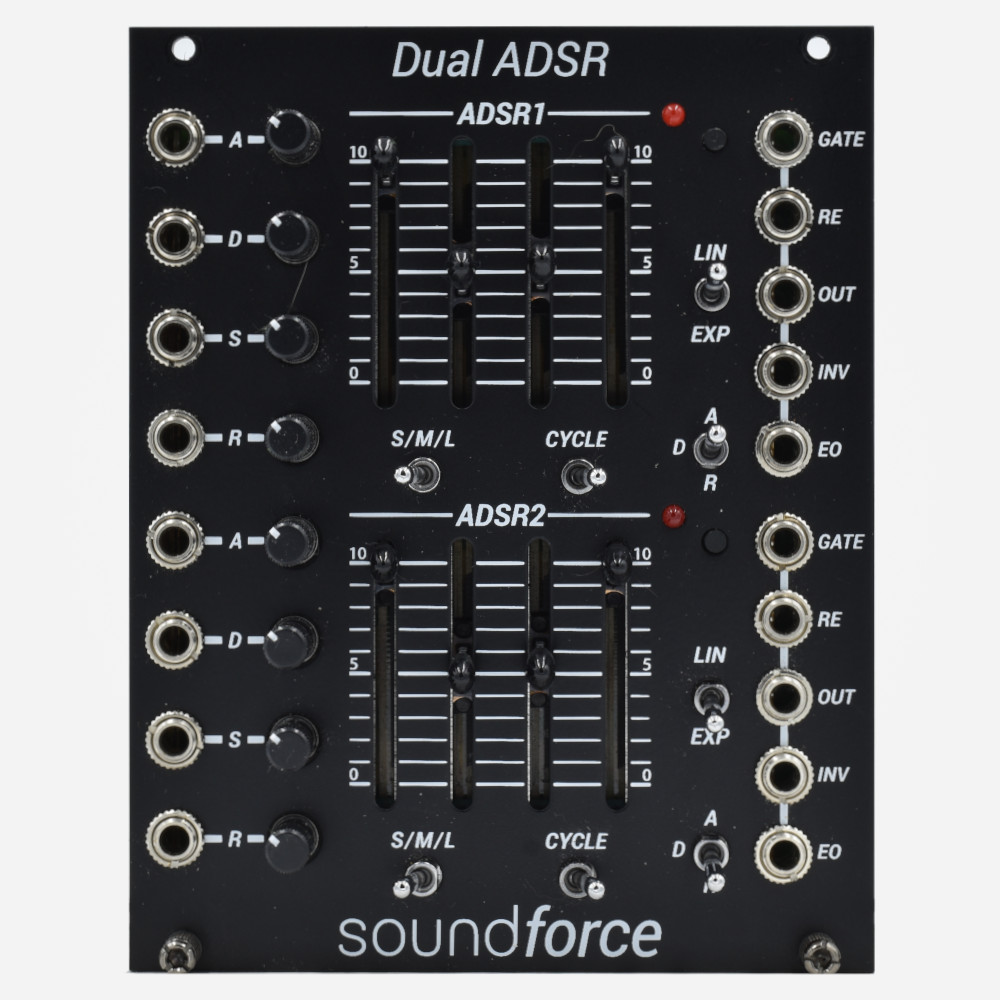

The SoundForce Dual ADSR is a feature-rich envelope generator with full CV control of each stage.

The Dual ADSR is powered by a 120Mhz ARM Cortex-M micro-controller with a built-in DAC. This modern chip allows for extremely smooth envelopes curves even at high frequencies. Thanks to digital technology, the implementation of CV control in software makes the hardware more simple thus economical, and allows for different time ranges and 2 curve responses (LIN/EXP).

The SoundForce Dual Filter features 2 identical envelope sections, one on the top and one on the bottom. Each section has 4 manual sliders to control each stage of the envelope. The CV input signals are added to the manual sliders position allowing you to modulate the ADSR curves with external CV sources.

Specifications:

– 20HP
– Depth: 38mm (including power connector)
– Power: +12V 85mA, -12V 10mA
– GATE & RE inputs range 0V or 5V
– OUT range 0V to 10V
– INV range 0V to -10V
– EO range 0V or 5V
– CV inputs range -5V to 5V

Note: This is a used item, and while it is guaranteed to be fully functional it is almost sure to also contain "rack rash" on the mounting holes and have some minor scratches on the panel from use. It will include a ribbon cable, m3 screws, and a box, but not the original box.
