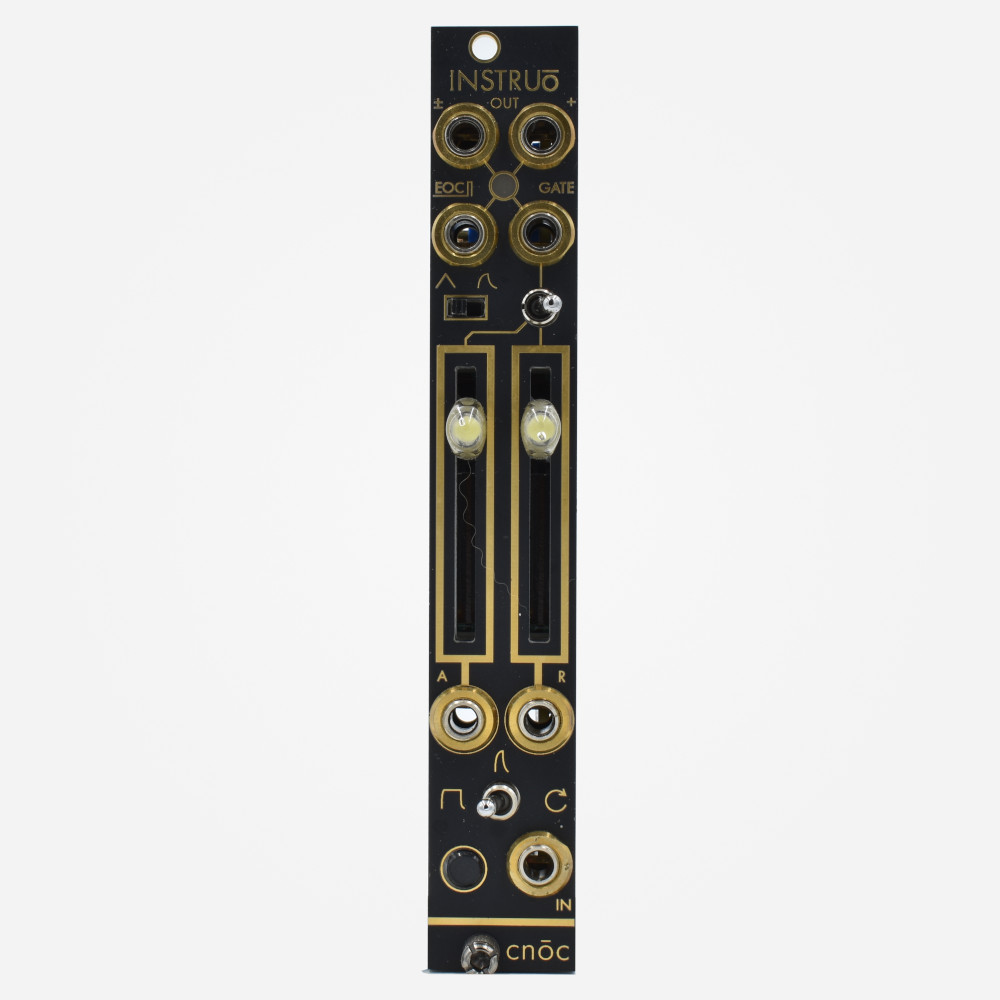

The Instruō cnōc is a fully analogue voltage-controlled two stage slew-based function generator. This style of function generator was pioneered by the West-coast mindset of sound synthesis and goes far beyond the functionality of a traditional envelope generator. With AR, ASR, and Looping modes, as well as its unipolar positive and bipolar outputs, cnōc finds its home in any patch.
Whether you need a general envelope generator, LFO, delayed gate signal, or a slew limiter to add portamento to your pitch sequences, cnōc fits the bill!
Features:
- AR, ASR, and Looping envelope modes
- External control over Attack and Release stages
- Unipolar positive and bipolar outputs
- Assignable gate output
- Manual trigger button
- Slew limiting functionality
- Two response curve settings
Specifications:
4HP
Depth: 27mm
+12V: 45mA
–12V: 40mA
Note: This is a used item, and while it is guaranteed to be fully functional it is almost sure to also contain "rack rash" on the mounting holes and have some minor scratches on the panel from use. It will include a ribbon cable, m3 screws, and a box, but not the original box.
