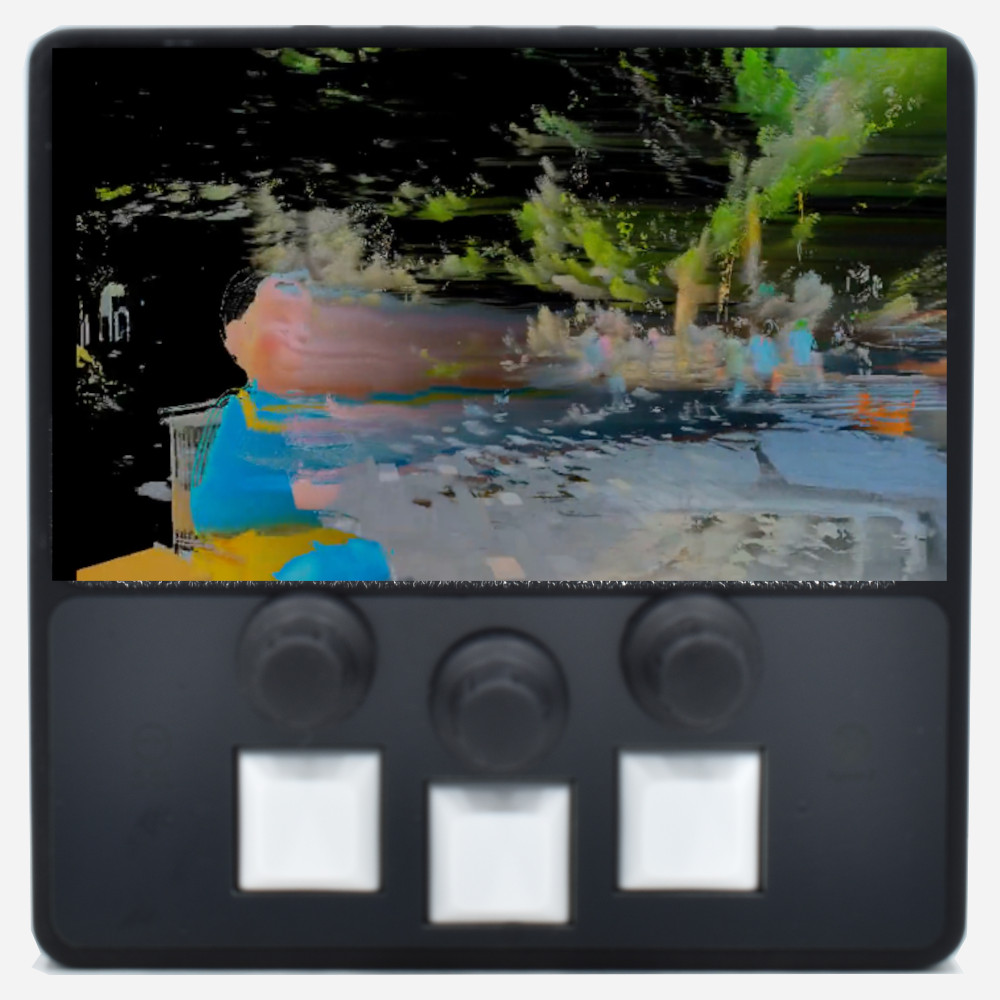

Sleepy Circuits HYPNO 2 Compact Video Synthesizer

Hypno 2 Video Synthesizer

Sleepy Circuits
$1,499.00

Hypno 2 is an all-in-one hardware Audio Visualizer, Video Synthesizer and Re-Sampler. It is inspired by common analog feedback workflows and aims to modernize their use for the ultimate end-to-end video art dream machine. At its core, Hypno 2 runs 2 channels of video and can save clips of its own output to repeatedly re-sample itself so the possibilities are literally endless.

Whether you are a touring band, an installation mastermind or clandestine pixel explorer, Hypno 2 simplifies your setup by integrating a display, controller, mic, animation systems, MIDI, Analog I/O, a high volume SSD and more in one small box. Not only is it amazing standalone, it can capture clips from your other video gear via a capture card so you no longer have to lug it to the show. A true back-saver for the sleepy Video Artist or Musician!

The Hypno 2’s UI uses a unique touchscreen + haptic encoder control scheme. Every parameter is always labeled & spatially consistent with the encoder/button layout while the haptic motor delivers contextual cues. This design is focused on reducing guesswork for the performer and leaning further in to video sampling friendliness, while maintaining the strong, now user programmable, video synthesis capabilities Hypno is known for.

Hypno 2 represents all of the learnings of the past 5 years producing Hypno 1. It uses the battle-proven proprietary sleepy codebase that has been in development over the past 7+ years.

Specifications

  • 1x 800x480 Capacitive Touch Display ( Flexible UI, File Browser, Search )

  • 1x Raspberry PI 5 (The brains of the operation)

  • 3x “Haptic Notch” Button Encoders

    • A sleepy original! Makes a buzz on relevant controls to indicate limits and important values

    • 0s a parameter on tap, randoms on repeated tap

  • 3x Mechanical Keyboard Switches (Hot Swappable, comes w/ Kailh Choc v2 RED)

  • 1x Haptic Motor (Vibration Feedback)

  • 1x Onboard Microphone

  • 4x CV Inputs (0-5v range, Eurorack Ready)

  • 1x AUX Input (line level audio in)

  • 2x Clock Inputs

  • 3x USB-A Ports (Host: Supports Drives, UVC Devices, Webcams & More)

  • 1x 250GB SSD user upgradable to 1TB+ via. single screw access

  • 1x USB-C Power input

  • 2x Micro Video Outputs (only one ext. display is render-able at one time)

  • 1x Luxurious smooth-touch enclosure

  • 1x Active Cooler (for maximum performance)

  • 1x Ethernet Jack (network for updates & more)

Software Overview

  • 2 Channels of Video Playback, Mixer and FX

    • Samples up to 1080p source video clips

    • Mix External Sources w/ up to 2 Cameras/Capture cards at once

    • User Editable Shape and FX Programs

    • Renders into a 800x480 video feed that can be infinitely Re-Sampled

  • Modern Touch Interface - No Guesswork: Preview and mix your content with ease!

    • Touch UIs are shown only on the internal display so you can tap away while your audience gets a clean render.

  • Onboard Recording, Rename, Export - Save and Manage your Visuals on Device

  • Over the Air (OTA) Updates - Quick and painless!

  • Foundational Factory Library - All core 5 shapes & 5 fx shaders from Hypno 1 are still here and all of our video packs can be pulled from our factory repository with a tap.

  • Linear Upscaling up to 1080p - the most compatible EDID

  • MIDI Friendly Engine Layout

    • BLE MIDI Support ( Auto Connects to Mezzz )

    • All Functions Logically Pre Mapped and Architected for MIDI integration

  • Per-Parameter LFOs & Routing Matrices

    • Route any CV / CC / Mic / AUX in the entire system to any parameter

    • Built-in dedicated sync-able LFOs on every parameter with 13 shapes and smoothing

  • Preset System - Load/Recall Full System States in a Flash
