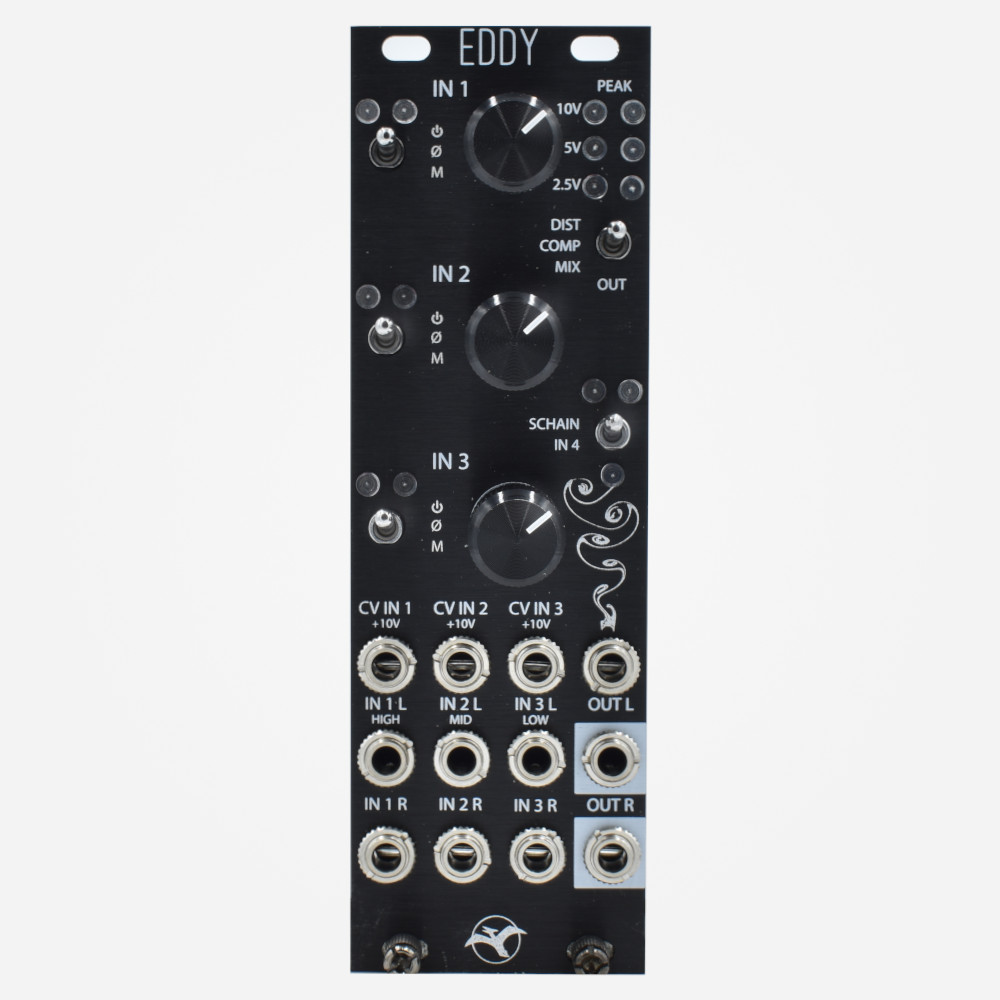

Eddy is a three channel stereo CV controlled mixer with sidechaineable compression and distortion, designed as a compact submixer. It also has normalized feedback paths for more experimental tone shaping, no input mixing, and percussion synthesis workflows.

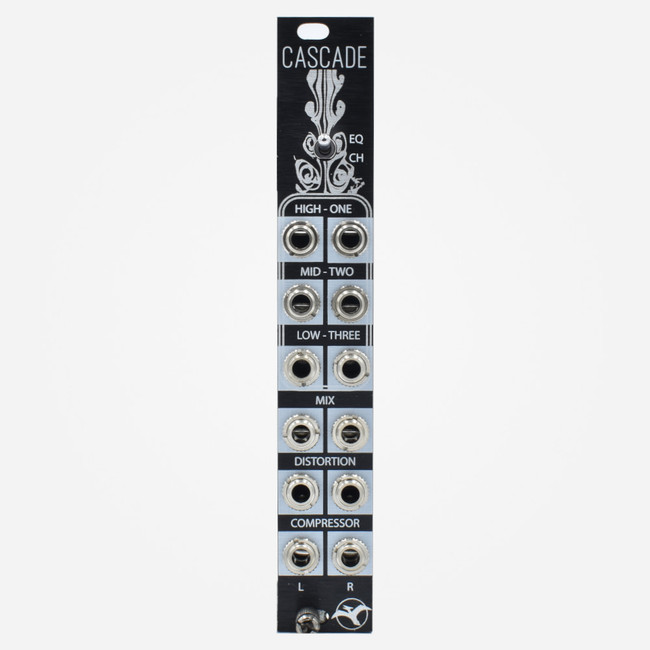

The Cascade expander is available seperately to allow access to the individual VCA or feedback channels and all mix options at once.

Features:

• 3 stereo channels
• Invert/mute switches for each channel
• Built in VCA feedback compressor
• Fourth input is switchable between a mono input or sidechain input
• Aggressive distortion
• Output switchable between distortion, compression, and clean mix on main module
• Expander provides individual outputs for each output option
• Normalized feedback through three bandpass filters allows for no input mixing and percussion synthesis
• Individual outputs for each filter available on expander
• Headers on back allow one channel of line level input
• Trimmer on back allows for altering compressor threshold level

Specifications:

8HP
(+4HP for the expander, to use as triple stereo VCA)
34mm depth (including cable)
current draw: +12V 146mA, -12V 146mA
