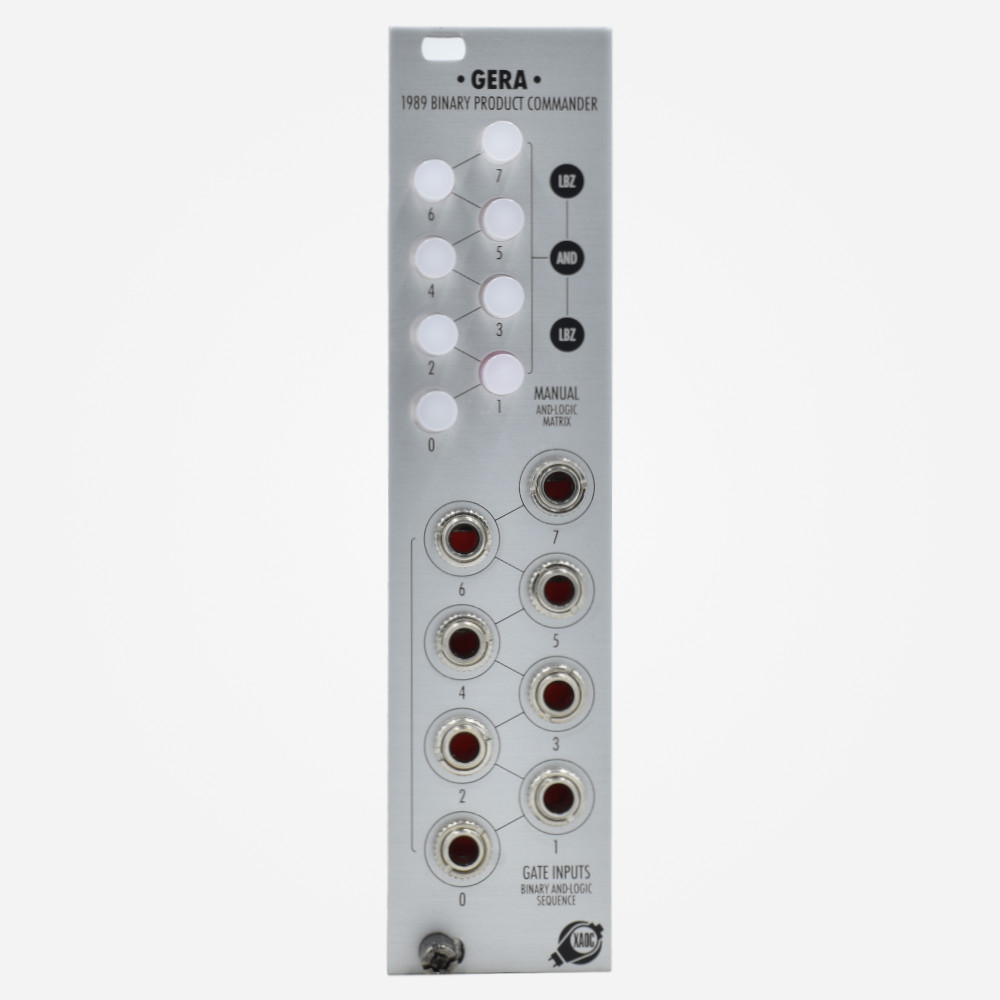

Gera is a component of the Leibniz Binary Subsystem. It works by processing data in the Leibniz bus and requires a connection to other Leibniz modules. It features eight individual gate inputs that affect the corresponding individual bits of the Leibniz data. Eight illuminated tact switches allow for manual inverting of each gate input. The primary function of Gera is masking individual bits of the digital data through the AND operation. For example, when connected to Drezno, which is processing a waveform or voltage, masking individual bits yields various forms of quantization. However, Gera does not need Drezno to work. The AND operation is also a basic building block for sequence automation, chaos and rhythm generation, and various cybernetic modular patches. Bit processing logic in Gera is hardware-based; hence there is virtually no latency, and the binary signals may change at extreme rates.
Features:
- Leibniz Binary Subsystem component
- Logical AND operation on Leibniz data
- Masking of individual bits controlled manually and by gate signals
- Visual indication by illuminated buttons
Specifications:
- 6hp, skiff friendly
- Current draw: +60mA / -0mA
- Drezno Expander
NOTE: This is a B-stock Module - it is a brand new and unused module but was aquired through a eurorack retailer that closed down rather than directly through XAOC - it includes the Unit, Ribbon Cables, Manual, and all items a new module would include except for the XAOC Sticker.
