Morgasmatron

Intellijel
$389.00

This is the third generation of Intellijel’s much loved Korgasmatron filter designed in collaboration with David G. Dixon.  Dual Multi-mode filters that track v/oct and create a clean sine wave while self oscillating, featuring serial and parallel and crossfading modes and special overdrive circuit!

Features

  • Analog self-oscillating, crossfading, six-mode dual filter.
  • Three FM inputs for each filter: One with 1V/OCT pitch tracking, one with a unipolar attenuator, and one with a bipolar attenuverter.
  • Serial or Parallel signal flow.
  • Overdrive distortion modelled after the Proco Rat guitar pedal.

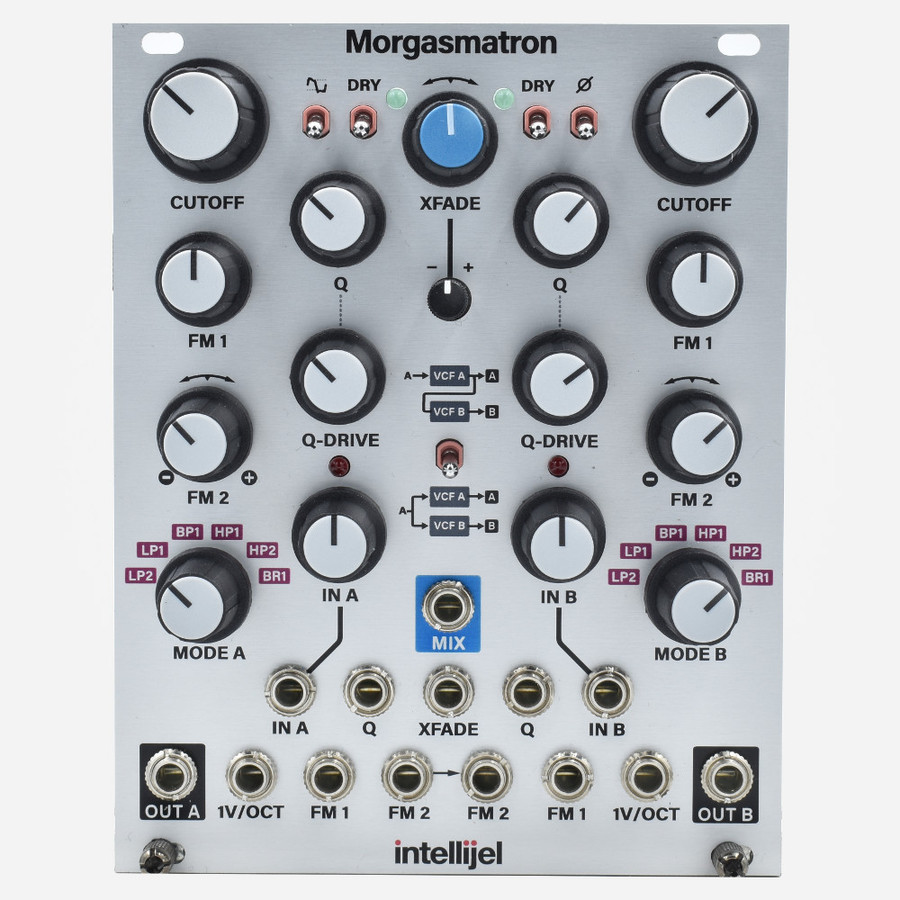

The Morgasmatron features two completely independent six-mode filters (labeled “A” and “B”) — each with its own mode-select knob, input, output, cutoff, resonance, Q-drive and gain control. Each filter has a pair of CV inputs (one with a built-in attenuator and the other with a built-in attenuverter) for modulating cutoff, and another CV input for modulating resonance. Both filters self-oscillate at maximum Q, and produce pitched sine waves that track the two separate 1V/OCT inputs.

You can use the two filters independently of one another, or you can use them together (in either a series or parallel connection) and smoothly crossfade between them using either the XFADE knob or the XFADE CV input and built-in attenuverter. You can flip the DRY switches to instantly bypass either or both filters; invert the phase of Filter B; or overdrive Filter A by switching on the new Overdrive circuit. A MIX output provides (as you might suspect) a mixed output of the two filters.

Specifications:

Width 20HP
Depth 38mm
Power:
113mA @ 12V
102mA @ -12V
